NEXTIE Standard 26" MTB Carbon Rim 40mm

Basic

• Code: NXT26AM40
• Rim Type: Clincher (Hookless)
• Materials: Toray T700 Carbon Fibers
• Tubeless Compatible: Yes
• Drillings: 28, 32
• Warranty: 2 Years

Specification

• Size: 26"
• BSD (Bead Seated Diameter): 559mm
• ERD (Effective Rim Diameter): 515mm

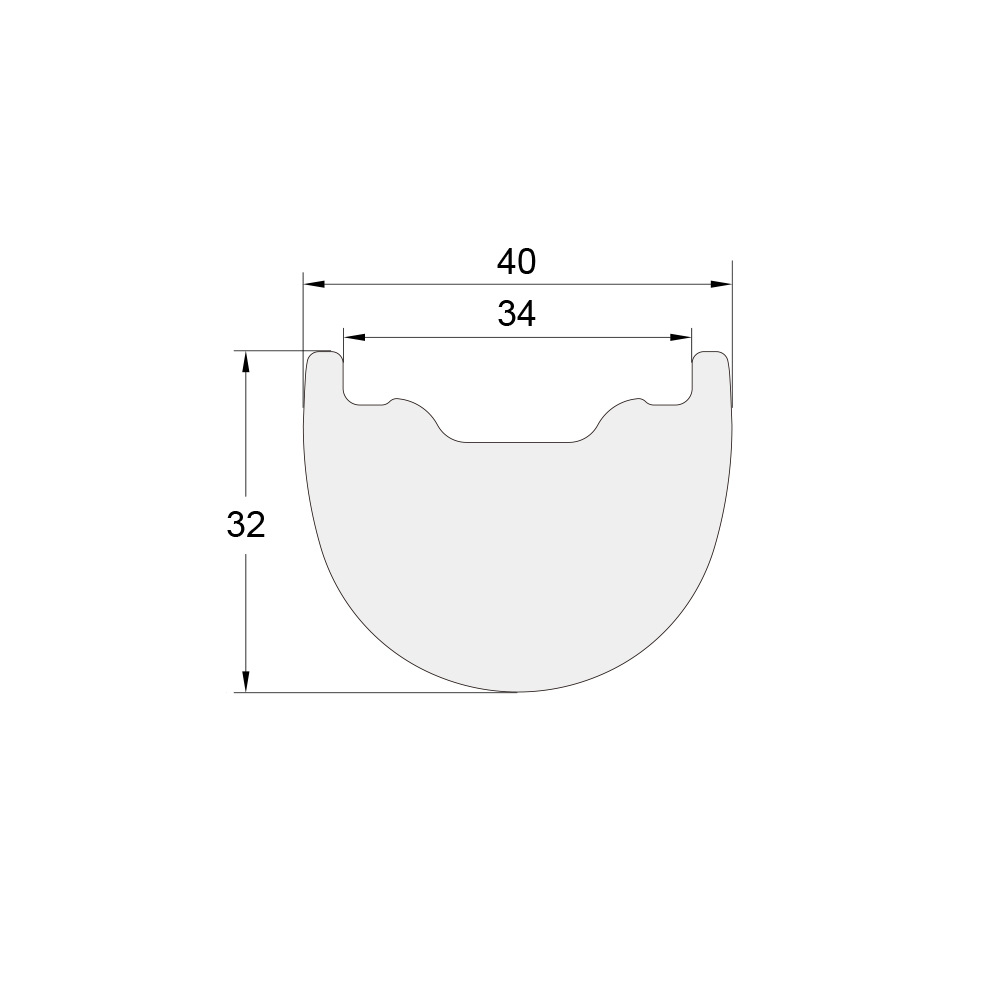

• External Width: 40mm
• Internal Width: 34mm
• Rim Height: 32mm
• Weight: 450g (AM) / 480g (Enduro)
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Spoke Holes Angle: ± 6°
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 2.2" ~ 3.0"
• Tire Pressure: 30 ~ 60psi
• Load Limit (One Wheel): 110kg

Appearance

• Carbon Weave Availability: UD / 3K / 12K
• Finish: Free Coating / Matte / Glossy

Application

• Trail / AM / Enduro / Freeride
